R290 double side roll bond evaporator for refrigerator freezer

FOB Price:

US 3-30 / Piece

Min.Order Quantity:

1000 Piece/Pieces

Supply Ability:

3500000 Piece/Pieces per Year

Port:

shanghai, ningbo

Place of Origin:

China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

retekool

Products Model:

We can manufacture according your design

Products Details
Company Profile

Quick Details

Brand Name: retekool

Model Number: We can manufacture according your design

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: R290 double side roll bond evaporator for refrigerator freezer Export standard seaworthy carton/carton+pallet/wooden boxes
Delivery Detail: According to your qty(standard within 30-35 days)

Specifications

Product Description

R290 double side roll bond evaporator for refrigerator freezer

New Arrival Bond Evaporator For Refrigerator,White Powder Painting Roll Bond Evaporator For Refrigerator,Aluminium Plate Roll Bond Evaporator For Refrigerator ,1031x448mm Single Side RollBond Evaporator,AL Plate Max Width 590mm Roll Bond Evaporator Evaporator,Roll Bond Evaporator,Refrigerator Evaporator,Refrigerator Roll Bond Evaporator,Aluminium Plate Evaporator,Aluminium Evaporator,Refrigerator Aluminium Plate Single Side Roll Bond Evaporator can be produced or designed according customers' request.

Raw material	Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm
Structure	Double side rollbond evaporator, Single side rollbond evaporator,part single side rollbond evaporator
Key process	Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards	1) Size: width 590 (max), length 2050 (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance	1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements.
Capacity	3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards

Residual moisture	≤5 /100cm3
Residual impurity	≤1 /100cm3
Residual mineral oil	≤100 /100cm3
Residual chlorine	≤5vloppm
Residual paraffin	≤3 /
Biggest single impurity	≤0.5mm

Specification of coating

Coating thickness	thickness of coating40 90 μ m
Hardness of coating	≥2H
Impact of coating	50cm?kg/cm impact, no crack
Adhesion of coating	≥two grade
Flexibility of coating	Around R=3D bend 180?, no crack or no fall off
Color tolerance of powder painting

Company Information

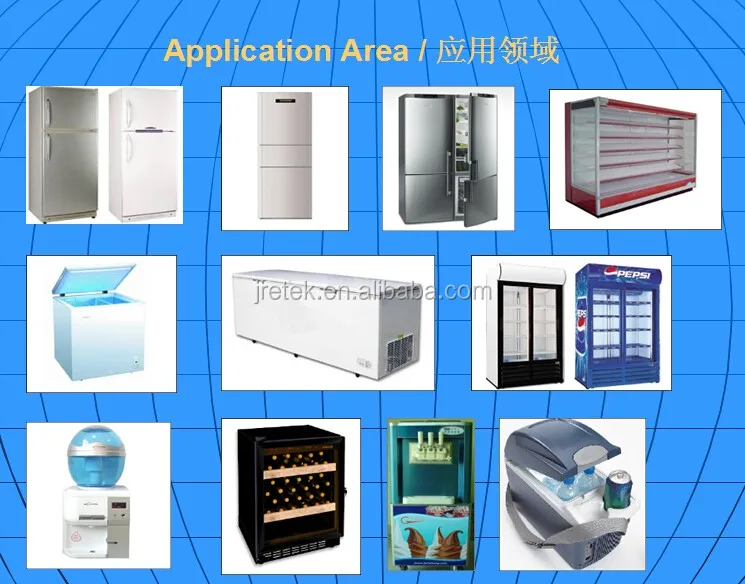

Applications

Packaging & Shipping

CUSTOMERS

EXHIBITIONS

USA, INDIA, PAKISTAN, GERMANY......

CONTACT INFORMATION

JINAN RETEK INDUSTRIES INC (JINAN RETEKOOL INC) is a professional manufacturer in China , specializing in refrigeration condenser , evaporator and copper fitler driers.

Our company devoted to innovation and development of refrigeration industry all the time . We take the lead in adopting the new design concept for wire tube condenser that can replace copper condenser .Due to new situation of low carbon and environmental protection , we develop most compact,efficient and highest resistance of salt spray test CO2 refrigerant wire tube condenser.

From year 2012 , our new products roll bond evaporators and fin evaporators ( aluminium evaporator ) are supplied to many different countries' refrigerator factory .These products are eco-friendly , high efficiency and energy conservation .

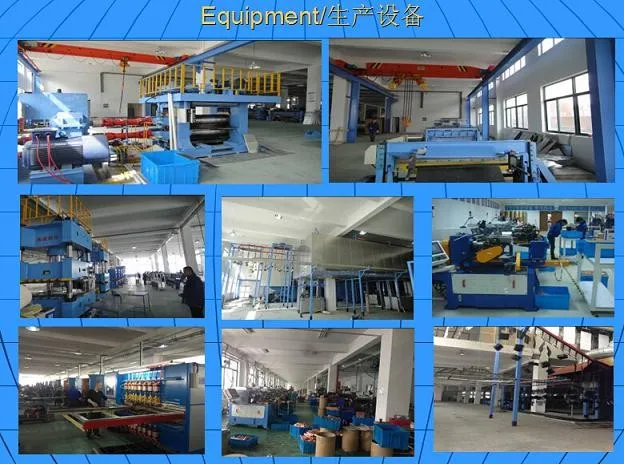

Our company have advanced manufacture equipment , strong technical team and first class management system . We have more than 30 national patents products & technology . We have been awarded the ISO9001:2008 international quality system certificate , ISO14000, RoHS certificate and UL certificate .

Now our products are mainly supplied to refrigerator/ freezer /water dispenser factories in more than 80 countries , include USA , Italy , Korea ,Russia ,Pakistan,India ,Mexico ,Indonesia ,UK......We also welcome customers all over the world to visit our company and set up business relationship for further development
